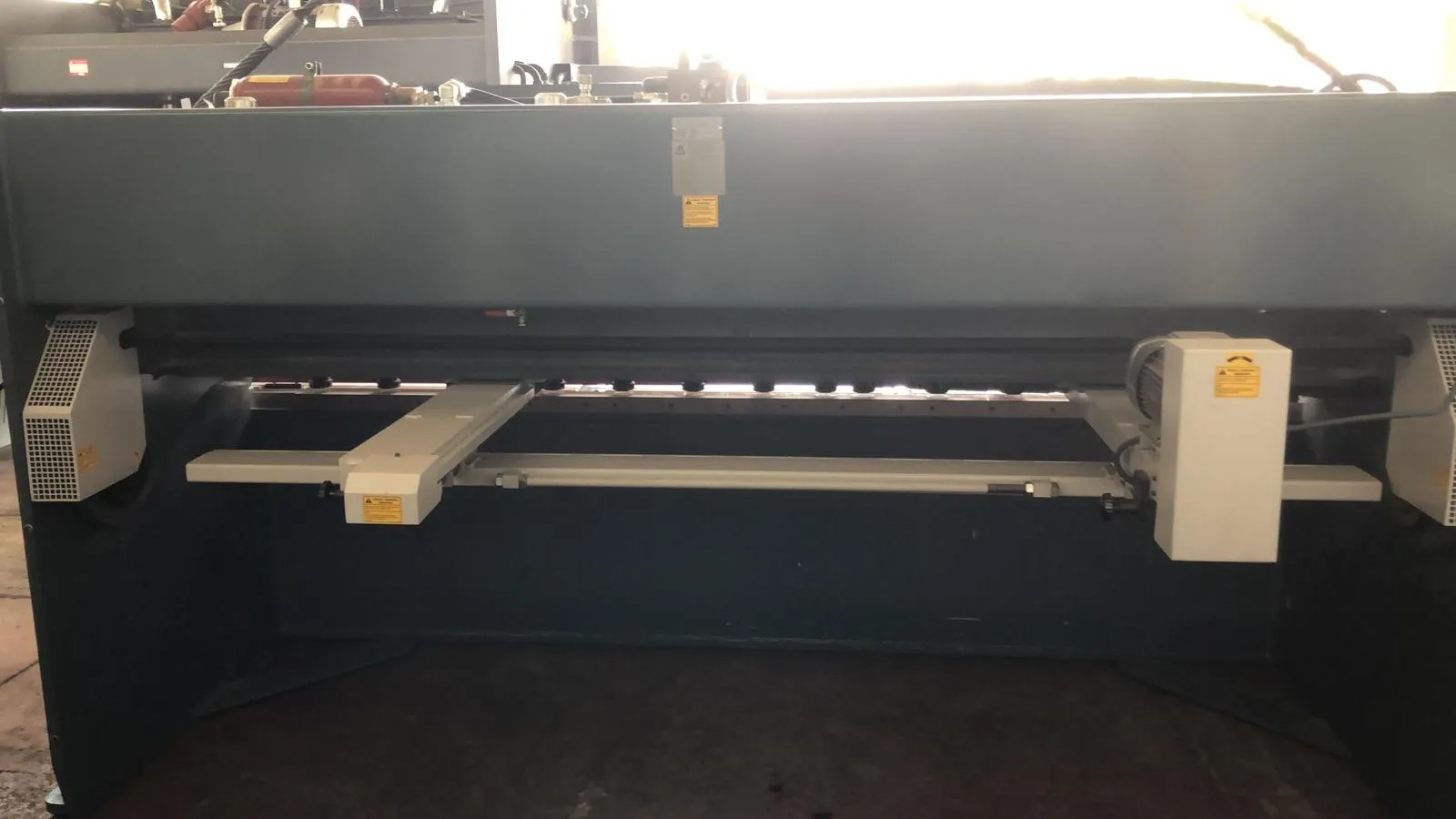

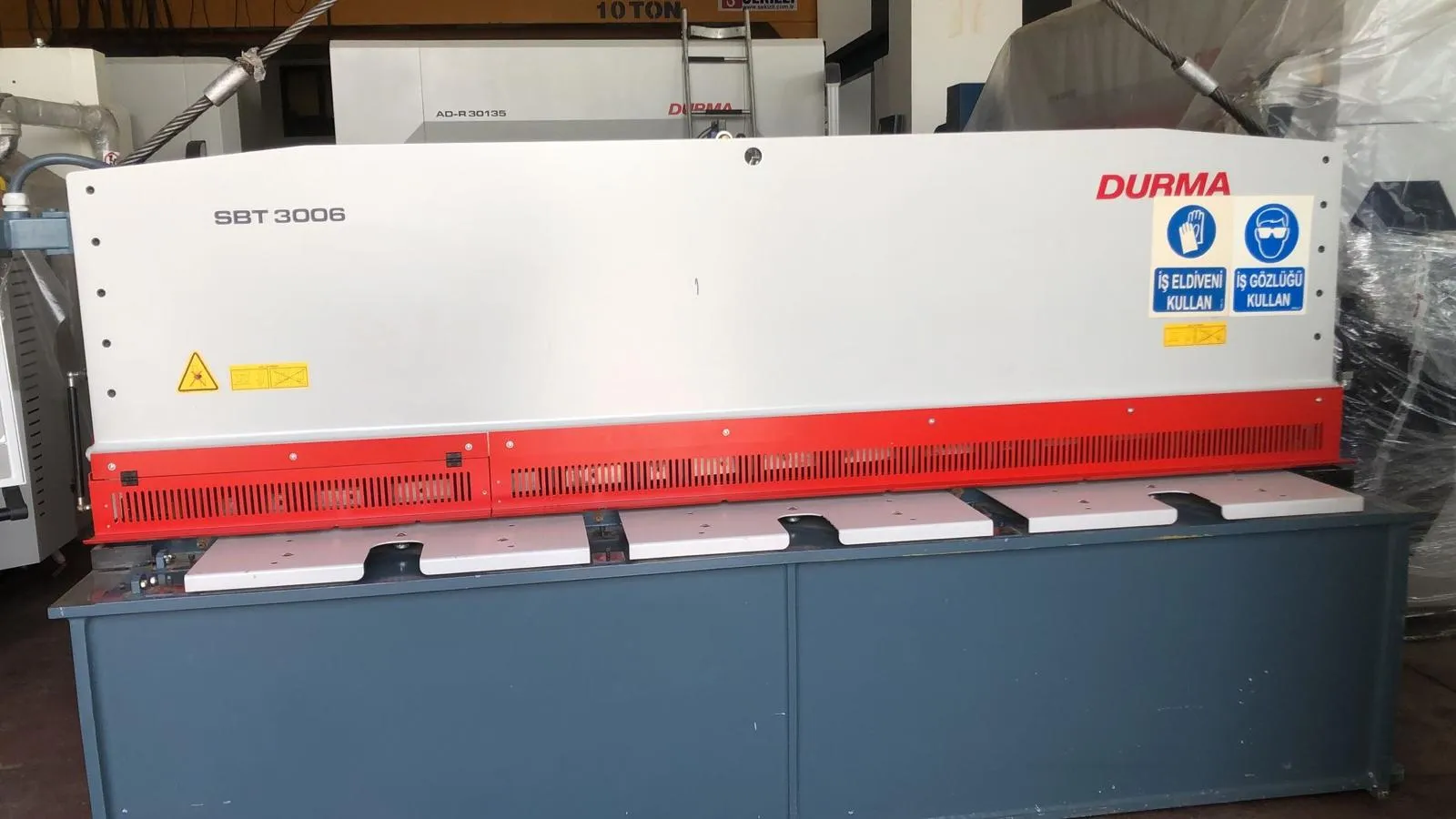

2019 Durma SBT 3006 Swing Beam Shear
| DURMA SBT 3006 SWING BEAM SHEAR | |
| Cutting Length | 3100 mm |
| MS (450 N/mm²) | 6 mm |
| SS (700 N/mm²) | 4 mm |
| Throat Depth | 50 mm |
| Stroke per min. | 15 mm |
| Cutting Angle | 1º 30’ º |
| Holddowns | 16 Unit |
| Holddown Force | 14 ton |
| Back Gauge Range | 1000 mm |
| Back Gauge Force | 0,75 kW |
| Back Gauge Speed | 200 mm/sec |
| Motor Power | 15 kW |
| Oil Capacity | 200 liter |
| Front Armas | 2 Unit |
| Tabla Height | 865 mm |
| Table Width | 500 mm |
| Table Length | 3515 mm |
| Length | 4110 mm |
| Width | 2200 mm |
| Total Width | 3700 mm |
| Height | 2700 mm |
| Weight | 7300 kg |
| Location | Turkey |
| Origin | Turkey |
Related products
-
Direct Deals
2013 Durma AD-S 60220 Hydraulic Press Brake
DURMA AD S 60220 HYDRAULIC PRESS BRAKE Bending Force 220 Ton Bending Length 6050 mm Distance Between Columns 5100 mm Stroke 265 mm Daylight 530 mm Throat Depth 450 mm Table Height 1050 mm Table Width ( Narrow / Wide) 154/300 mm Y Rapid Speed 140 mm/sec Y Working Speed 10 mm/sec Y Return Speed 120 mm/sec Y Axis Precision 0,01 mm X Axis Working Speed 350 mm/sec Location Turkey Origin Turkey SKU: n/a -
Direct Deals

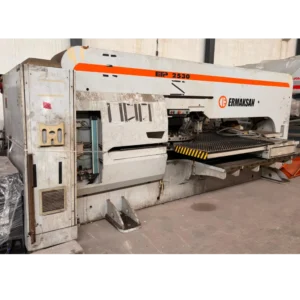

2023 Cnc Turret Punch Press
